Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine

Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine

hospital washer extractor two way tilting

tilting washer extractor washing machine

industrial washer extractor with warranty

Luogo di origine:

Shanghai, Cina

Marca:

YASEN

Certificazione:

CE,ISO9001:2008

Numero di modello:

IWS

Contattici
Chiedi un preventivo
Dettagli del prodotto
Caratteristica:
lavatrice basculante a due vie
Materiale:
Acciaio inossidabile
Processo di pulizia:
Pulizia con acqua calda
Tipo di pulizia:
Pulito-In-posto (CIP)
Funzione:
Estrattore rondella dell'ospedale
Usato per:
Ospedale
Riscaldamento:
Riscaldamento a vapore
Marca:
YASEN
Termini di pagamento e di spedizione
Quantità di ordine minimo
1pc
Prezzo
$238,000.00 - $396,000.00/sets
Imballaggi particolari
Imballaggi in legno per estrattivo per lavatrici
Capacità di alimentazione
100 Set/Set al mese Lavatrici da lavanderia commerciali
Descrizione del prodotto
hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine

The Hospital Washer Extractor integrated with two-way tilting function (also referred to as Hospital Two Way Tilting Washer Extractor) is a specialized industrial laundry equipment engineered for medical textile processing. It combines three core capabilities—high-efficiency washing, high-speed extraction, and bidirectional drum tilting—to meet the strict hygiene, efficiency, and fabric protection requirements of healthcare facilities.

Technical Parameters
Technical Parameter Unit SXT-1300FS SXT-1500FS
Rated Capacity kg 130 130
Front Tilt Angle ° (Degree) 25° 21°
Rear Tilt Angle ° (Degree) 25° 26°
Cylinder Diameter mm 1300 1470
Cylinder Depth mm 980 880
Washing Speed rpm 35 (Variable) 32 (Variable)
High-Speed Extraction Speed rpm 650 (Variable) 610 (Variable)
Power Supply V/Ph/Hz 380/3/50 380/3/50
Main Motor Power kW 11 15
Heating Method   Steam Steam
Steam Pipe Diameter inch G1″ G1.5″
Steam Pressure MPa 0.4-0.6 0.4-0.6
Cold/Hot Water Pipe Diameter inch G2″ G2″
Cold/Hot Water Pressure MPa 0.3-0.5 0.3-0.5
Drain Outlet Diameter mm Φ127*2 Φ140*2
Compressed Air Pressure MPa 0.6-0.8 0.6-0.8
Noise Level dB(A) ≤75 ≤75
Net Weight kg 4500 6800
Overall Dimensions (W*D*H) mm 2070*2400*2085 2520*2380*2612
Application Scenarios:
  • Medical staff textiles: Staff uniforms, white coats, surgical gowns, isolation clothing
  • Patient-used textiles: Patient gowns, bed sheets, pillowcases, blankets
  • Operational medical fabrics: Surgical drapes, instrument covers, operation sheets
  • Auxiliary medical textiles: Ward curtains, medical towels, disinfectant wipes (reusable type)
  • Special medical fabrics: Radiation-protective clothing, laboratory anti-static clothing
Industrial Intelligent Washing: Q&A
  1. Q: How does the two-way tilting function of the Hospital Tilting Washing Machine improve medical textile cleaning efficiency?

    A: The Hospital Tilting Washing Machine’s bidirectional tilting (0°–35° adjustable angle) optimizes textile-solution contact. Forward tilting enhances friction between heavy textiles (e.g., thick patient blankets) and detergent, boosting stain removal (e.g., body fluid residues) by 20%–25%. Backward tilting reduces fabric tangling for delicate items (e.g., surgical drapes), ensuring uniform cleaning without fiber damage.

  2. Q: Does the Hospital Two Way Tilting Washing Machine meet medical-grade disinfection standards for contaminated textiles?

    A: Yes. It integrates high-temperature washing (60–95℃) and optional ozone disinfection, which eliminates 99.9% of pathogenic microorganisms (e.g., bacteria, viruses) per ISO 15883. The 316L stainless steel drum resists corrosion from medical disinfectants, preventing cross-contamination—critical for processing soiled medical textiles like used surgical gowns.

  3. Q: What advantage does the Hospital Tilting Washing Machine offer for post-cleaning textile handling compared to fixed-drum washers?

    A: After high-speed extraction (1000–1200 RPM) to reduce moisture, the Tilting Washing Machine tilts forward (15°–20°) for automatic discharge. This cuts manual handling time by 30%–40%, avoids contact with wet, disinfected textiles, and streamlines transfer to dryers—supporting fast turnover of medical linens (e.g., patient bed sheets) in busy hospitals.

  4. Q: Can the Hospital Two Way Tilting Washing Machine maintain the functional integrity of special medical textiles (e.g., radiation-protective clothing)?

    A: Absolutely. It features programmable tilting speed and temperature controls. For special fabrics, the machine uses low-tension backward tilting (30℃ wash temperature) and gentle extraction, which removes stains (e.g., dust, light soiling) without damaging protective coatings (e.g., lead layers in radiation gear), preserving their functional performance.

Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 0 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 1 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 2 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 3 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 4 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 5 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 6 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 7 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 8 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 9 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 10 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 11 Hospital Washer Extractor Tilting Washer Extractor Two Way Tilting Washing Machine 12

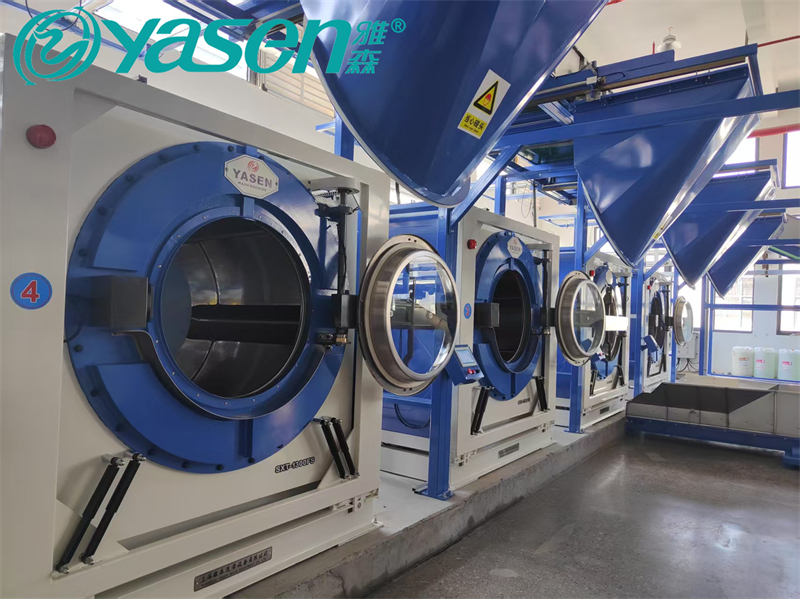

Yasen IWS Washing System is an integrated washing system based on automated single machines. It offers high extent of customization washing solution for the clients, which brings a comprehensive input-sorting-washing-drying-output solution.

Compared with tunnel washing equipment, Yasen IWS system is more flexible to configure, clients are allowed to select the particular quantity of washing or drying machines according to their actual washing needs. Clients are also allowed to upgrade the system with more machines in the future, in order to meet the increasing quantity of washing orders.

The structure is strengthened for the constant washing tasks, the airbag is optimized for 350G extracting power. The system also may connected with other processing equipment such as folders, ironers to save the time and the cost, then lower the energy consumption.

Yasen IWS system have strong mechanical maintenance convenience, which will keeps high running efficiency when one or more washer/dryer need maintenance.

When a certain machine need maintenance, users just need to push the machine out of the system and carry out maintenance independently while the whole system running is almost not effected when compared with tunnel washing equipment.
